Product Description

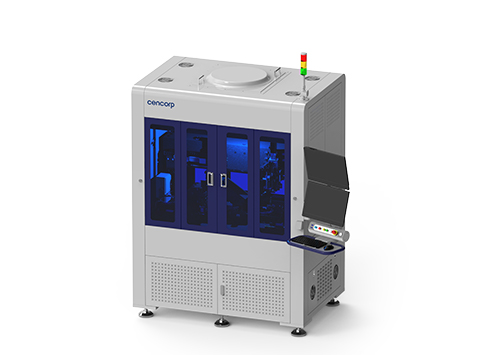

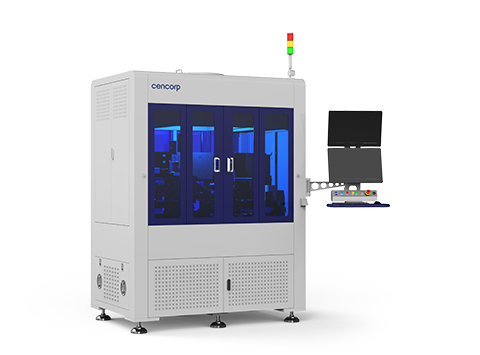

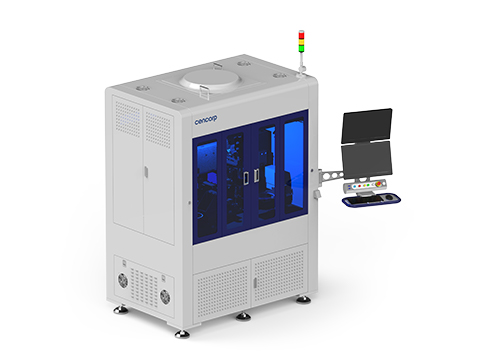

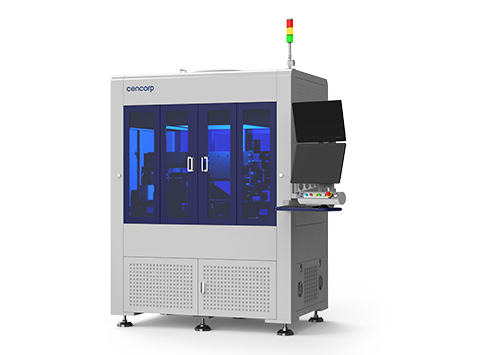

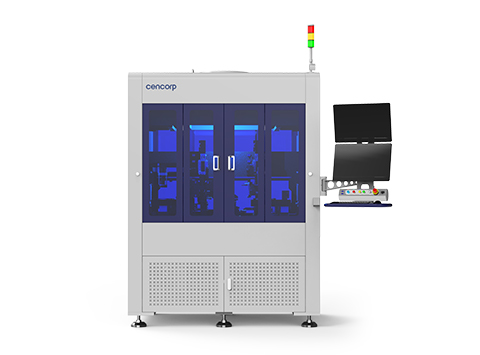

For the semiconductor industry optical chip production process product appearance defect detection.
Minimum product size:100um*100um*75um
Product Composition: Automatic loading and unloading module+Autofocus module+High precision optical inspection module
Advantages
Advanced microchip transfer technology
Nanoscale high-precision sliding table module
Submicron high precision visual inspection system
AI deep learning algorithm
